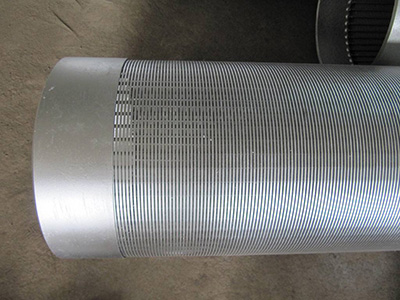

Wire wound pipe is also known as filter pipe, well pipe, etc.
Materials: 201, 302, 304, 304L, 316, 316L stainless steel wire and low carbon steel wire.

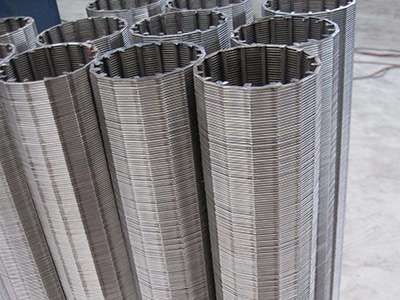

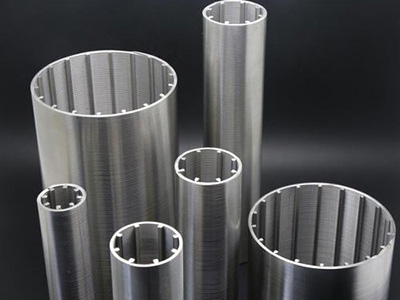

Features: the winding pipe is composed of two parts: the support strip and the screen strip. The support bar can be round wire, triangle wire or trapezoid wire, and the screen bar is v-wire. The gap size is accurate and the filtering accuracy is high. It has the characteristics of solid structure, high temperature resistance, corrosion resistance, good mechanical performance, long service life, safety and reliability, and can be used for filtering of multiple media.
Purpose: the wire wound pipe is a kind of filtering equipment with holes, which can be used with deep well pump and submersible pump, as well as water treatment equipment, environmental protection, fresh water treatment for converting sea water into industrial water and domestic water, tap water treatment, water softening treatment, petrochemical industry, petroleum products terminal filter, chemical acid-base liquid filtration, alcohol and other organic solutions Recycle the filter.
Product performance: the continuous gap greatly enhances the overflow area, so it contacts with the aquifer for replacement.
Production range: we can produce products with the diameter of 80-550mm, gap of 0.1-10 mm and length of 50-6000 mm.
Screen size | internal diameter | external diameter | Female thread size | ||||
in | mm | in | mm | in | mm | in | mm |
2 | 51 | 2 | 51 | 25/8 | 67 | 23/4 | 70 |
3 | 76 | 3 | 76 | 35/8 | 92 | 33/4 | 95 |
4 | 102 | 4 | 102 | 45/8 | 117 | 43/4 | 121 |
5 | 127 | 5 | 127 | 55/8 | 143 | 53/4 | 146 |
6 | 152 | 6 | 152 | 65/8 | 168 | 7 | 178 |
8 | 203 | 8 | 203 | 85/8 | 219 | 91/4 | 235 |
10 | 254 | 10 | 254 | 103/4 | 273 | 113/8 | 289 |
12 | 305 | 12 | 305 | 123/4 | 324 | 133/8 | 340 |
14 | 356 | 13 1/8 | 333 | 14 | 356 | ---- | ---- |
16 | 406 | 15 | 381 | 16 | 406 | ---- | ---- |
20 | 508 | 18 3/4 | 476 | 20 | 508 | ---- | ---- |
Winding |
|
|
|
|
|
|
|
|
wide（mm) | 1.5 | 1.5 | 2.3 | 2.3 | 1.8 | 3.0 | 3.7 | 3.3 |
high（mm) | 2.2 | 2.5 | 2.7 | 3.6 | 4.3 | 4.7 | 5.6 | 6.3 |
Towing bar |
|
|
|
|
| Round silk ● |
wide（mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Ø2.5mm－Ø5mm |
high（mm) | 2.7 | 3.6 | 4.7 | 5.6 | 6.3 |
