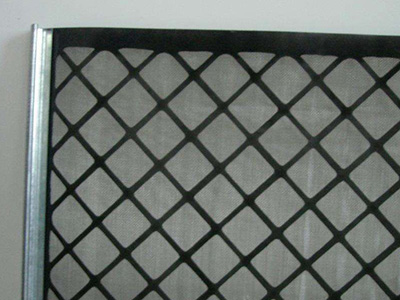

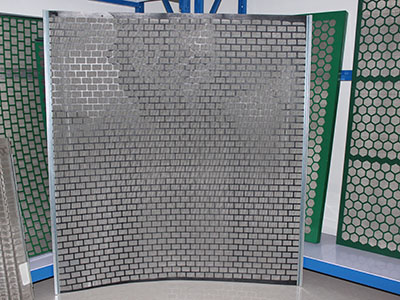

Hook Strip Soft Screen
Hook Strip Soft Screen is the most widely used screen, the features of screen of this type:
1. 2 to 3 layers of stainless steel wire cloths bonding as a whole without metal foils.
2.Install in the shaker by the way of crisperding without metal branch cuttings fiber towel glue and with large effective area.
3.The wire diameter of the bottom layer of the screen mesh is relatively coarse, which plays the roles of screening and supporting with the upper layer and extends the life of the screen.
4.The soft screen, with low price, effective filtration area is bigger
than flat screen, but its lift is comparatively short with that of flat
screen. It needs to choose different screen, depending on the drilling
conditions.
|
Screen Model |
Range of Mesh |
Dimension(W*L) |
Brand&Model of shaker |
|
GMHSF-1 |
20-325 |
700×1050mm |
FLC2000 |
|
GMHSF-2 |
20-325 |
1212X1141mm |
SWACO ALS-2 |
|
GMHSF-3 |
10-80 |
915X925mm |
JSS(USA) |
|
GMHSF-4 |
8-120 |
1514X1225mm |
NOV 4X5 |
|
GMHSF-5 |
20-250 |
1000X1150mm |
NS-115/2 |
|
GMHSF-6 |
20-250 |
600X1040mm |
NCS-300X2 |
|
API RP 13C(ISO 13501) |
|
|
D100 Particle sizing（Micron） |
API Standard Screen Number |
|
>780.0 to 925.0 |
API 20 |
|
>655.0 to 780.0 |
API 25 |
|
>550.0 to 655.0 |
API 30 |
|
>462.5 to 550.0 |
API 35 |
|
>390.0 to 462.5 |
API 40 |
|
>327.5 to 390.0 |
API 45 |
|
>275.0 to 327.5 |
API 50 |
|
>231.0 to 275.0 |
API 60 |
|
>196.0 to 231.0 |
API 70 |
|
>165.0 to 196.0 |
API 80 |
|
>137.5 to 165.0 |
API 100 |
|
>116.5 to 137.5 |
API 120 |
|
> 98.0 to 116.5 |
API 140 |
|
> 82.5 to 98.0 |
API 170 |
|
> 69.0 to 82.5 |
API 200 |
|
> 58.0 to 69.0 |
API 230 |
|
> 49.0 to 58.0 |
API 270 |
|
> 41.5 to 49.0 |
API 325 |
