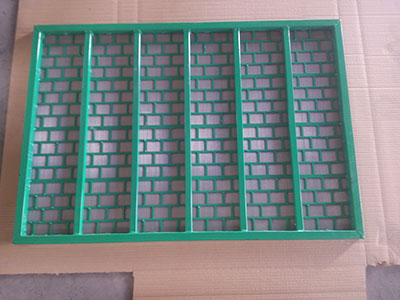

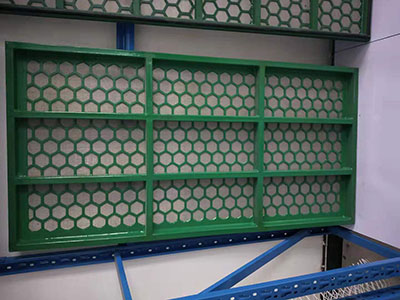

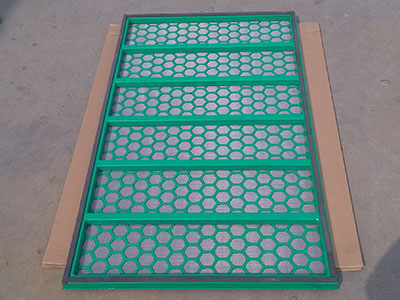

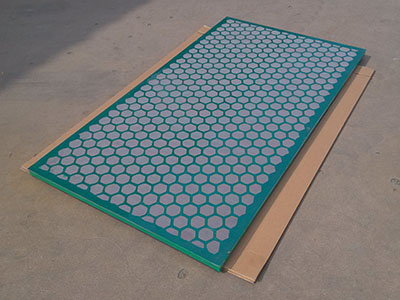

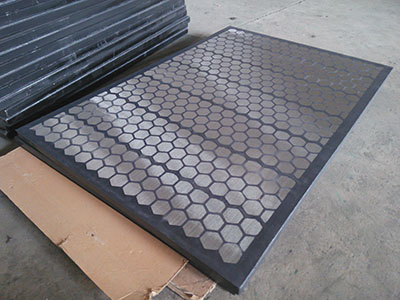

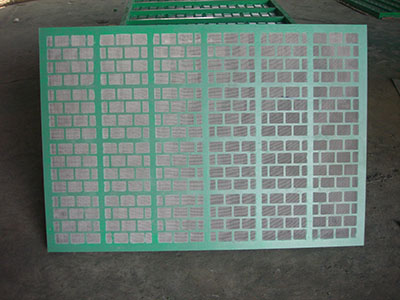

Steel Frame Screen
Steel Frame Screen is the most widely used screen,the features of screen of this type:
1.The stainless steel wire cloth combined directly bonded on the steel
plank, then tightly bonded together by steel frames and metal plank.
2.Every layer of wire cloth has different meshes, accurately and reasonably making screening more micro mesh.
3.It forms a reliable whole, with high-strength steel frame, reinforced
supports and moderate tension screening cloth, which greatly enhances
the tolerate flow, strength and working life .Rapid wedge tensioning
devices make screen installation more convenient, and save the time of
machine halt for changing .
4. The surface is divided into more small parts. They can prevent
excessive expansion of local damage. At the same time, we have the
special rubber plug to repair the damage. It can save time and reduce
the cost.
|
Screen Model |
Range of Mesh |
Dimension(W*L) |
Brand&Model of shaker |
|
GMTK-1 |
20-325 |
585×1165mm |
MONGOOSE |
|
GMTK-2 |
20-325 |
635×1253mm |
KING COBRA |
|
GMTK-3 |
20-325 |
913×650mm |
VSM300 |
|
GMTK-4 |
20-325 |
720×1220mm |
KTL48 SERIES |
|
GMTK-5 |
20-325 |
712×1180mm |
D380 |
|
GMTK-6 |
20-325 |
737*1067mm |
FSI 50＆500＆5000 |
|
API RP 13C(ISO 13501) |
|
|
D100 Particle sizing（Micron） |
API Standard Screen Number |
|
>780.0 to 925.0 |
API 20 |
|
>655.0 to 780.0 |
API 25 |
|
>550.0 to 655.0 |
API 30 |
|
>462.5 to 550.0 |
API 35 |
|
>390.0 to 462.5 |
API 40 |
|
>327.5 to 390.0 |
API 45 |
|
>275.0 to 327.5 |
API 50 |
|
>231.0 to 275.0 |
API 60 |
|
>196.0 to 231.0 |
API 70 |
|
>165.0 to 196.0 |
API 80 |
|
>137.5 to 165.0 |
API 100 |
|
>116.5 to 137.5 |
API 120 |
|
> 98.0 to 116.5 |
API 140 |
|
> 82.5 to 98.0 |
API 170 |
|
> 69.0 to 82.5 |
API 200 |
|
> 58.0 to 69.0 |
API 230 |
|
> 49.0 to 58.0 |
API 270 |
|
> 41.5 to 49.0 |
API 325 |
