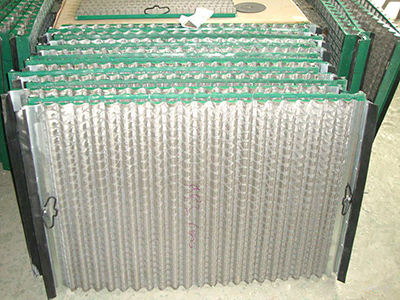

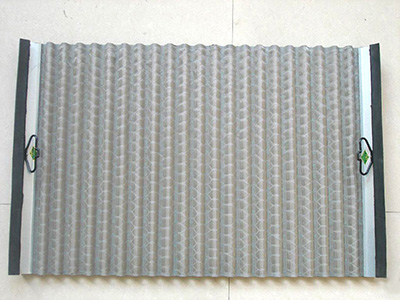

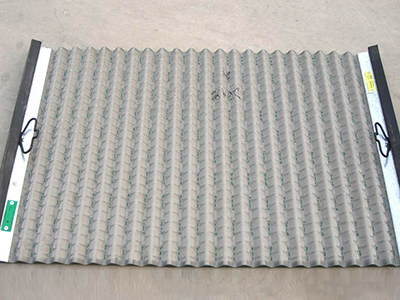

Wave Screen
The feature of Wave Screen:
1.Wave Screen has large effective area, and drilling fluid is handle in high-efficiency by using it.
2.Each wire cloth in the sieving screen has different meshes, and accurate collocation can make the screen has better effect.

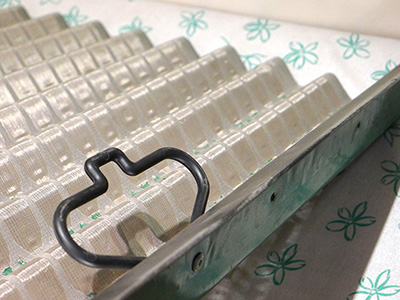

3.Stainless steel wire cloth is wave, and closely holds to metal
support plank together. The effective area is up to 125% to 150% of the
flat screen with the same specification, so as to improve of handling
capacity.
Our factory can produce various specifications wave screen according to customer demand.
|
Screen Model |
Range of Mesh |
Dimension(W*L) |
Brand&Model of shaker |
|
GMB-PMD-1 |
20-325 |
697X1053mm |
FLC2000 |
|
GMB-PMD-2 |
20-325 |
695x1050mm |
FLC500 |
|
GMB-PMD-3 |
20-325 |
710x626mm |
FLC600 |
|
GMB-PMD-4 |
20-325 |
567x1070mm |
D-HYP |
|
API RP 13C(ISO 13501) |
|
|
D100 Particle sizing（Micron） |
API Standard Screen Number |
|
>780.0 to 925.0 |
API 20 |
|
>655.0 to 780.0 |
API 25 |
|
>550.0 to 655.0 |
API 30 |
|
>462.5 to 550.0 |
API 35 |
|
>390.0 to 462.5 |
API 40 |
|
>327.5 to 390.0 |
API 45 |
|
>275.0 to 327.5 |
API 50 |
|
>231.0 to 275.0 |
API 60 |
|
>196.0 to 231.0 |
API 70 |
|
>165.0 to 196.0 |
API 80 |
|
>137.5 to 165.0 |
API 100 |
|
>116.5 to 137.5 |
API 120 |
|
> 98.0 to 116.5 |
API 140 |
|
> 82.5 to 98.0 |
API 170 |
|
> 69.0 to 82.5 |
API 200 |
|
> 58.0 to 69.0 |
API 230 |
|
> 49.0 to 58.0 |
API 270 |
|
> 41.5 to 49.0 |
API 325 |
